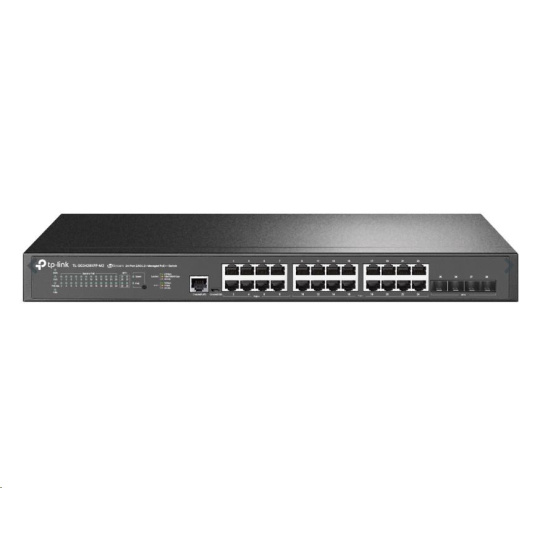

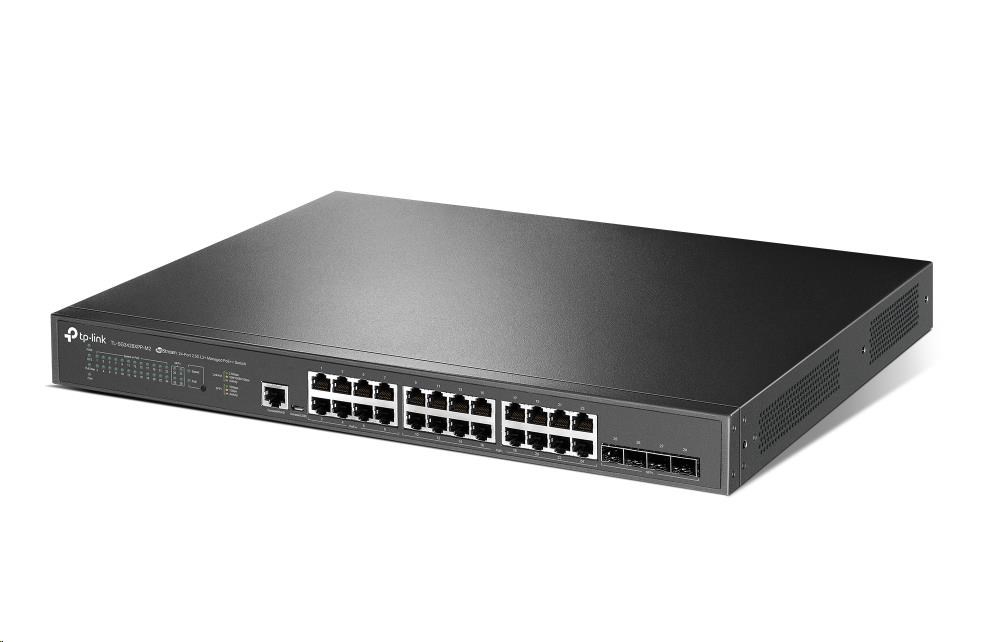

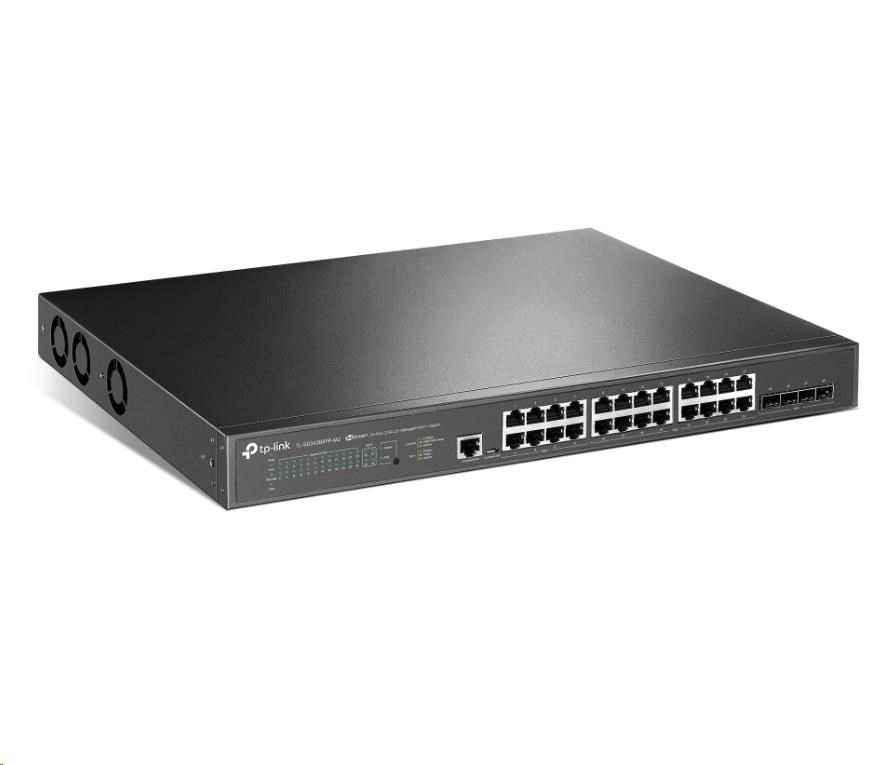

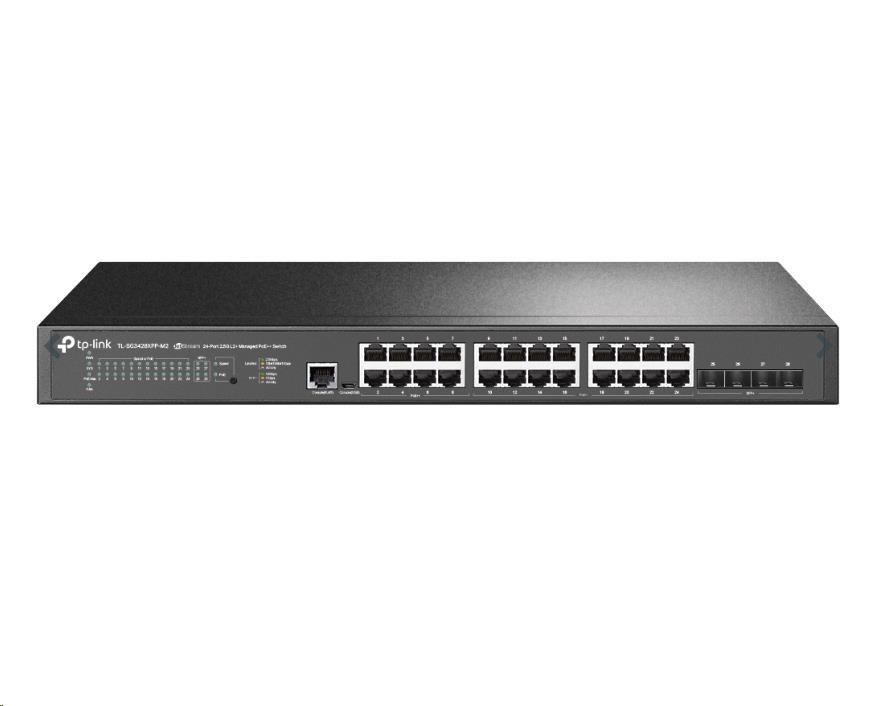

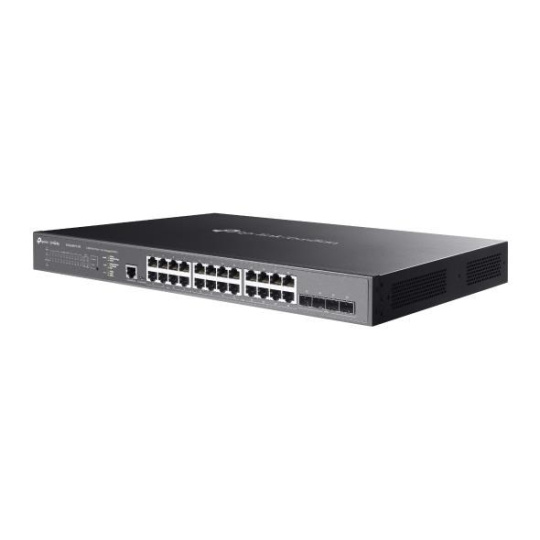

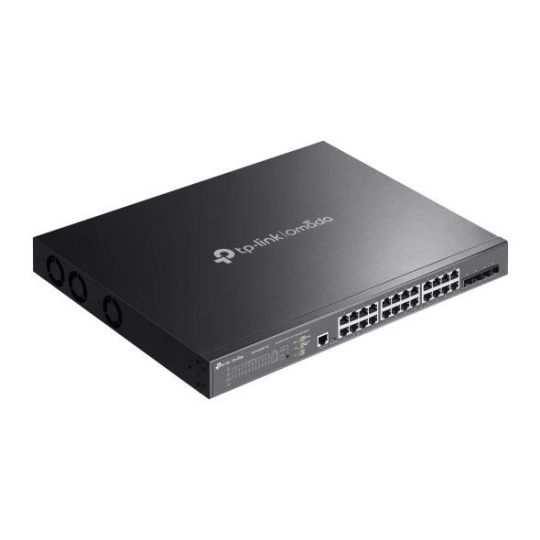

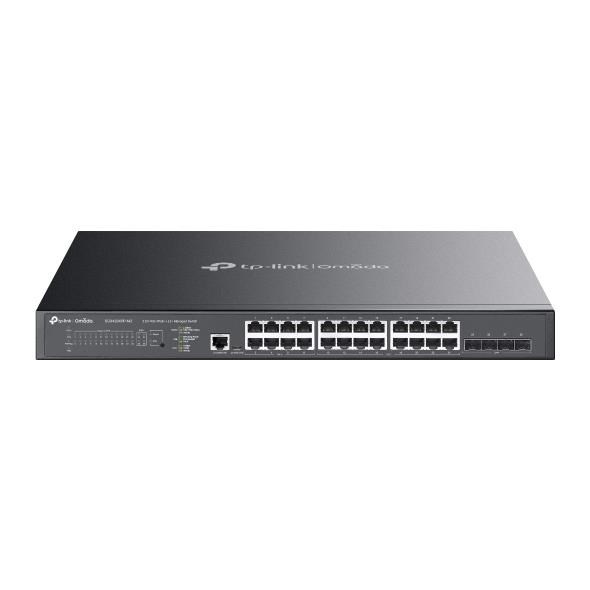

TP-Link OMADA JetStream switch SG3428XPP-M2 (24x2,5GbE, 4xSFP+,16xPoE+,8xPoE++,16xPoE+,500W)
Popis a parametry
TP-Link OMADA JetStream switch SG3428XPP-M2 (24x2,5GbE, 4xSFP+,16xPoE+,8xPoE++,16xPoE+,500W)
TP-Link SG3428XPP-M2
JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch witch 16-Port PoE+ and 8-Port PoE++
- 2,5G PoE++/PoE+ porty pro WiFi 7/6E/6: 24× 2,5 Gbps porty pokořují 2,5G bariéru a odemykají plný potenciál WiFi 7/6E/6 AP.

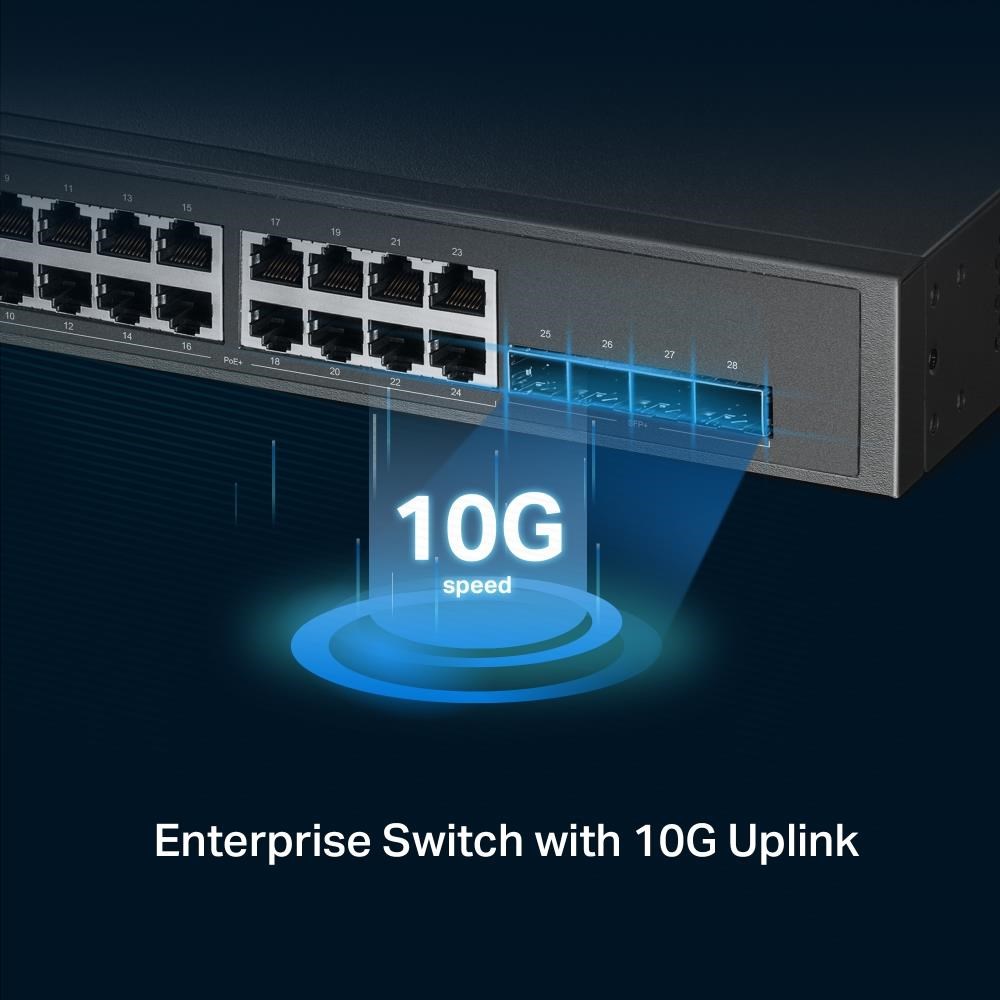

- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ sloty umožňují širokopásmové připojení a neblokující přepínací kapacitu.
- 500 W PoE Budget: 8× 802.3bt/at/af/-kompatibilní PoE++ a 16× 802.3at/af-kompatibilní PoE+ porty s celkovým napájením 500 W.
- Integrováno do Omada SDN: Zero-Touch Provisioning (ZTP), centralizovaná správa cloudu a inteligentní monitorování.
- Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
- Static Routing: Pomáhá směrovat interní provoz pro efektivnější využití síťových zdrojů.
- Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a další.
- Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.
Learn more about TP-Link PoE technology >
Learn more about TP-Link 10G Multi-Gig technology >
Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/uk/business-networking/poe-switch/sg3428xpp-m2/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 24× 2.5 Gbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 3 |

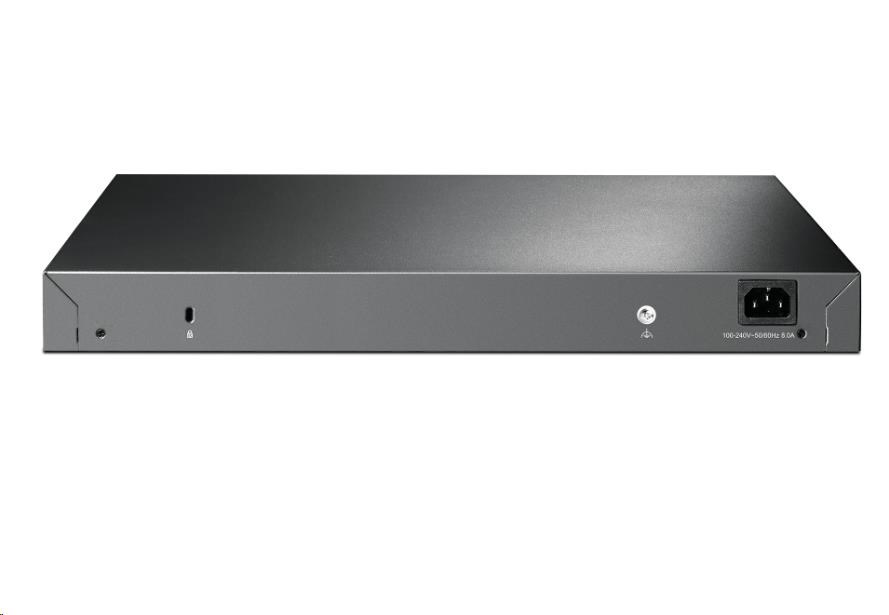

| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3bt/at/af compliant • PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port • PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port • Power Budget: 500 W |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 629.1 W (110V/60Hz) |
| Max Heat Dissipation | 2153.45 BTU/h (110 V/60 Hz) |
| PERFORMANCE | |
| Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 148.80 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L2 and L2+ Features | • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 256 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| L3 Features | • 32 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SG3428XPP-M2 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
Maximální počet portů
28
Technologie
2,5 Gigabit ethernet + 10 Gigabit optika
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
Provedení
Rack mounted 19"
PoE budget (W)
500
Přenosová rychlost LAN (Mb/s)
2500
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Funkce
L2+
Počet SFP+ portů
4
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3bt
Počet portů LAN
24
Ventilátor
Ano
Počet PoE+ portů
16
Počet PoE++ portů
8
Počet portů LAN
24
Maximální počet portů
28
Počet SFP+ portů
4
PoE budget (W)
500
Počet PoE+ portů
16
Počet PoE++ portů
8
TP-Link OMADA JetStream switch SG3428XPP-M2 (24x2,5GbE, 4xSFP+,16xPoE+,8xPoE++,16xPoE+,500W)
