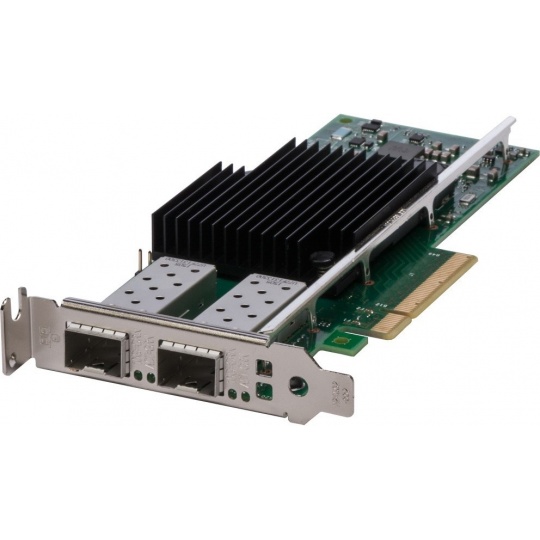

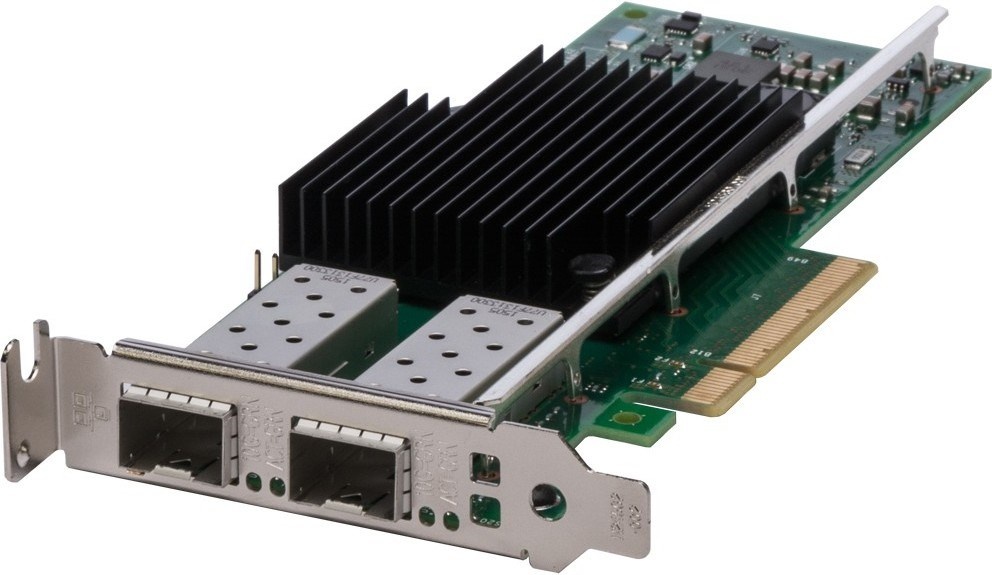

Intel Ethernet Converged Network Adapter X710-DA2, retail
Popis a parametry
Intel Ethernet Converged Network Adapter X710-DA2, retail
| Code Name | Fortville |
| Essentials | |
| Vertical Segment | Server |
| Cable Medium | Copper |
| Cabling Type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Bracket Height | Low Profile and Full Height |
| Supported Operating Systems | intel.com/support/EthernetOS |
| Networking Specifications | |
| Port Configuration | Dual |
| Data Rate Per Port | 1GbE/10GbE |
| Intel® Virtualization Technology for Connectivity (VT-c) | Yes |
| Speed & Slot Width | 8.0 GT/s, x8 lanes |
| Controller | Intel(R) X710 |
| Package Specifications | |
| System Interface Type | PCIe v3.0 (8.0 GT/s) |
| Low Halogen Options Available | See MDDS |
| Intel® Virtualization Technology for Connectivity | |
| On-chip QoS and Traffic Management | Yes |
| Flexible Port Partitioning | Yes |
| Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Advanced Technologies | |
| iWARP/RDMA | No |
| Intel® Ethernet Power Management | Yes |
| Intel® Data Direct I/O Technology | Yes |
| Intelligent Offloads | Yes |
| Storage Over Ethernet | iSCSI, NFS |
.
ParametryPorovnání
Počet kanálů
2
Připojitelnost do slotu
PCI-E
Intel Ethernet Converged Network Adapter X710-DA2, retail
