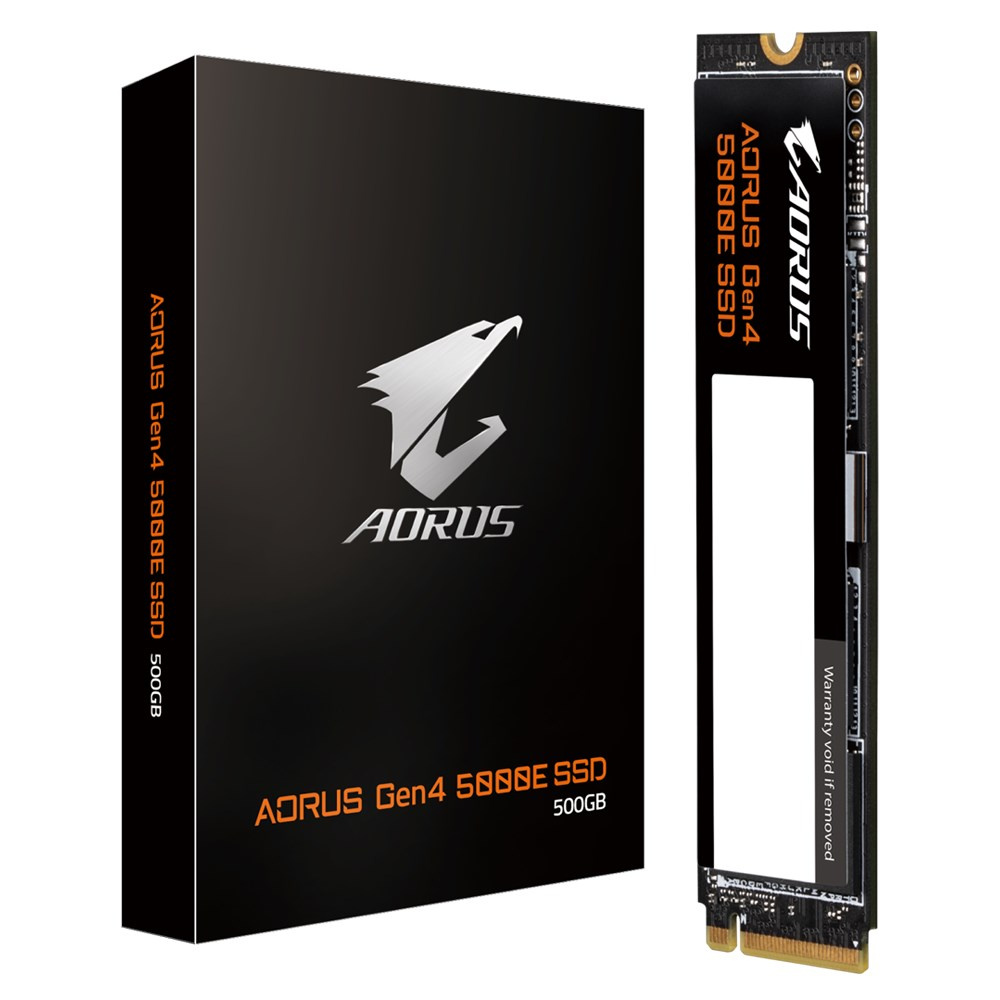

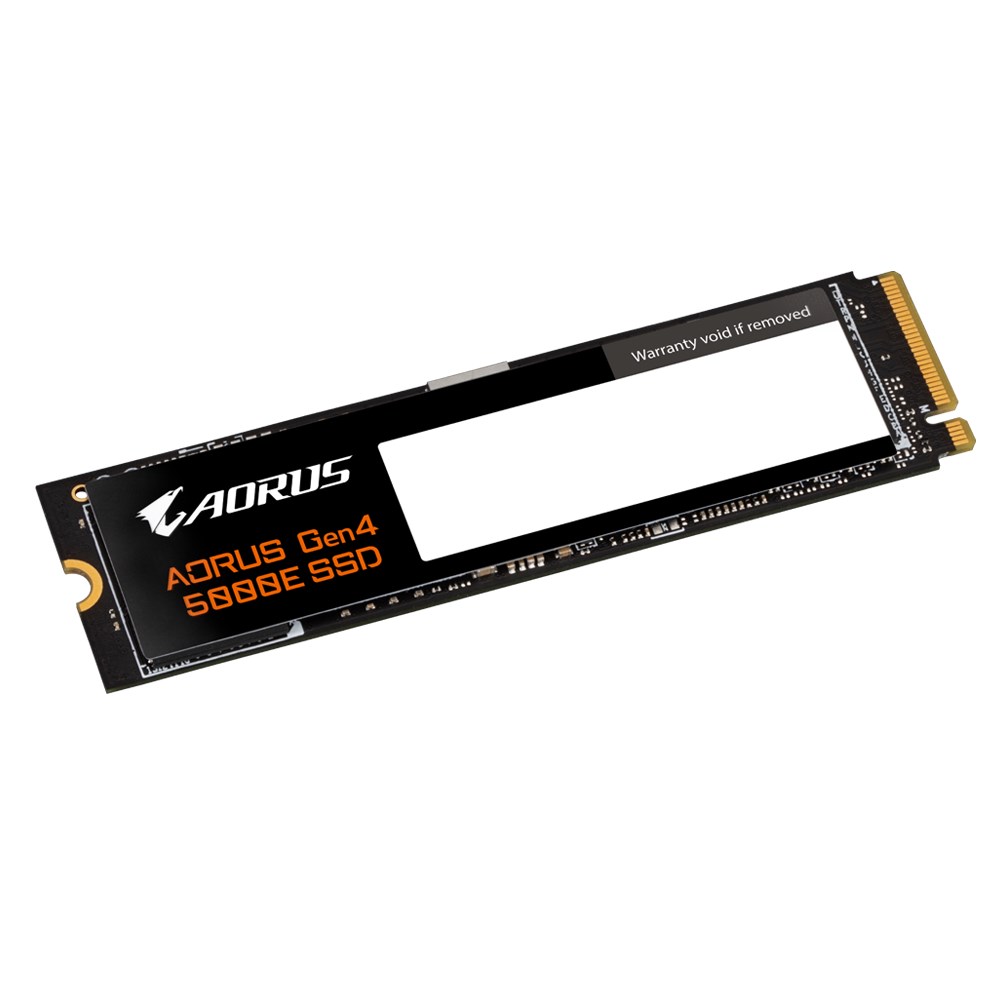

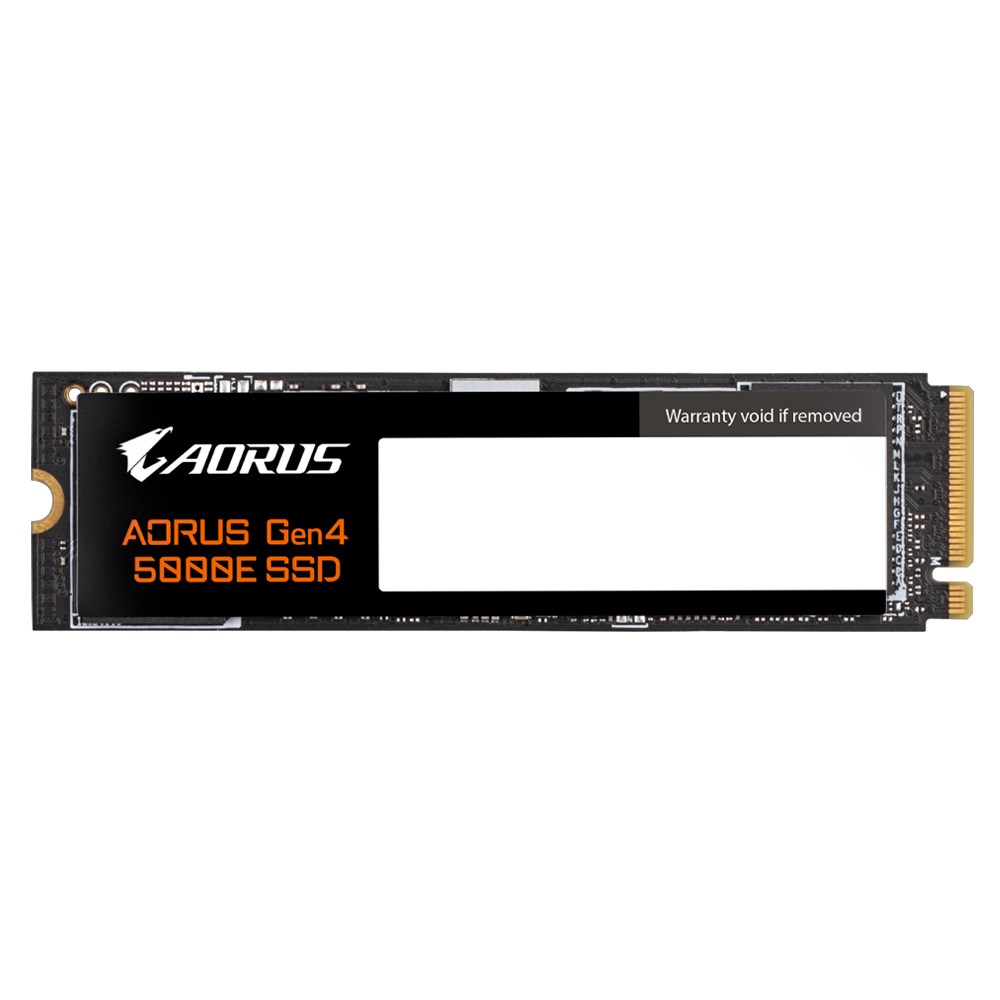

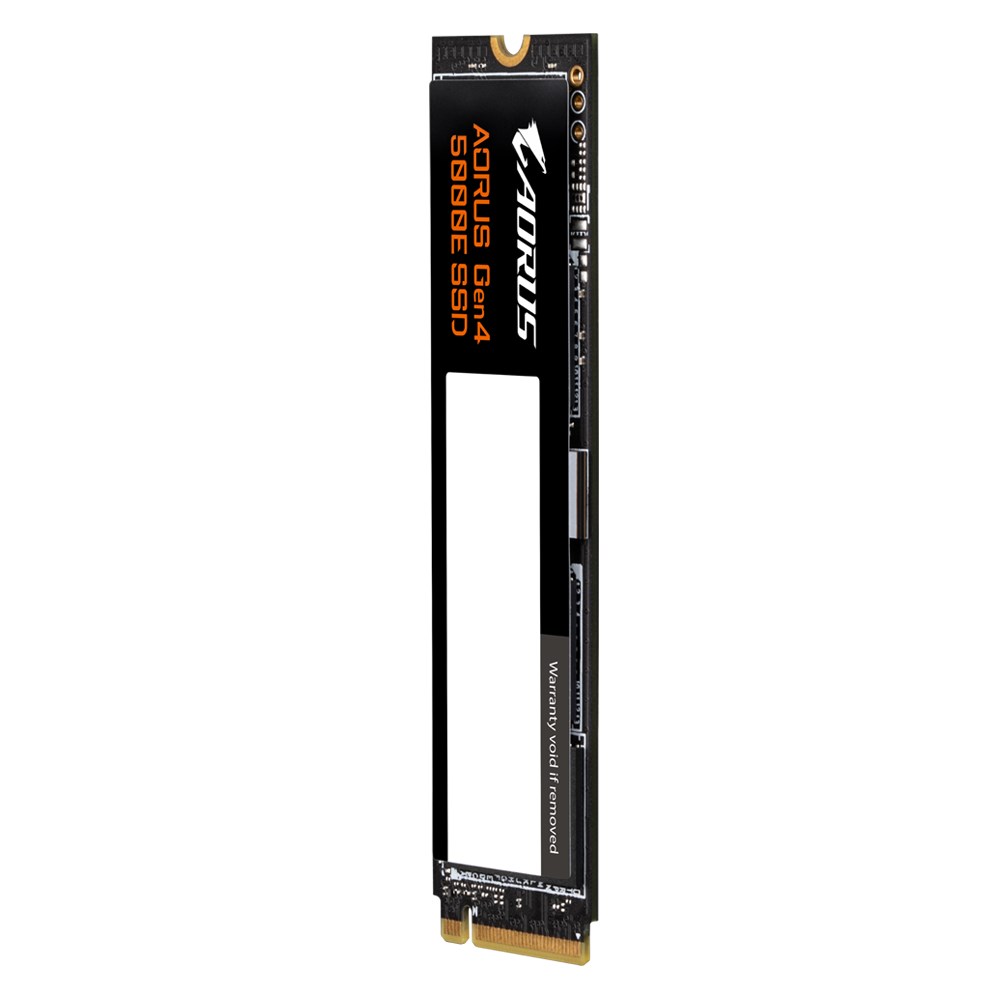

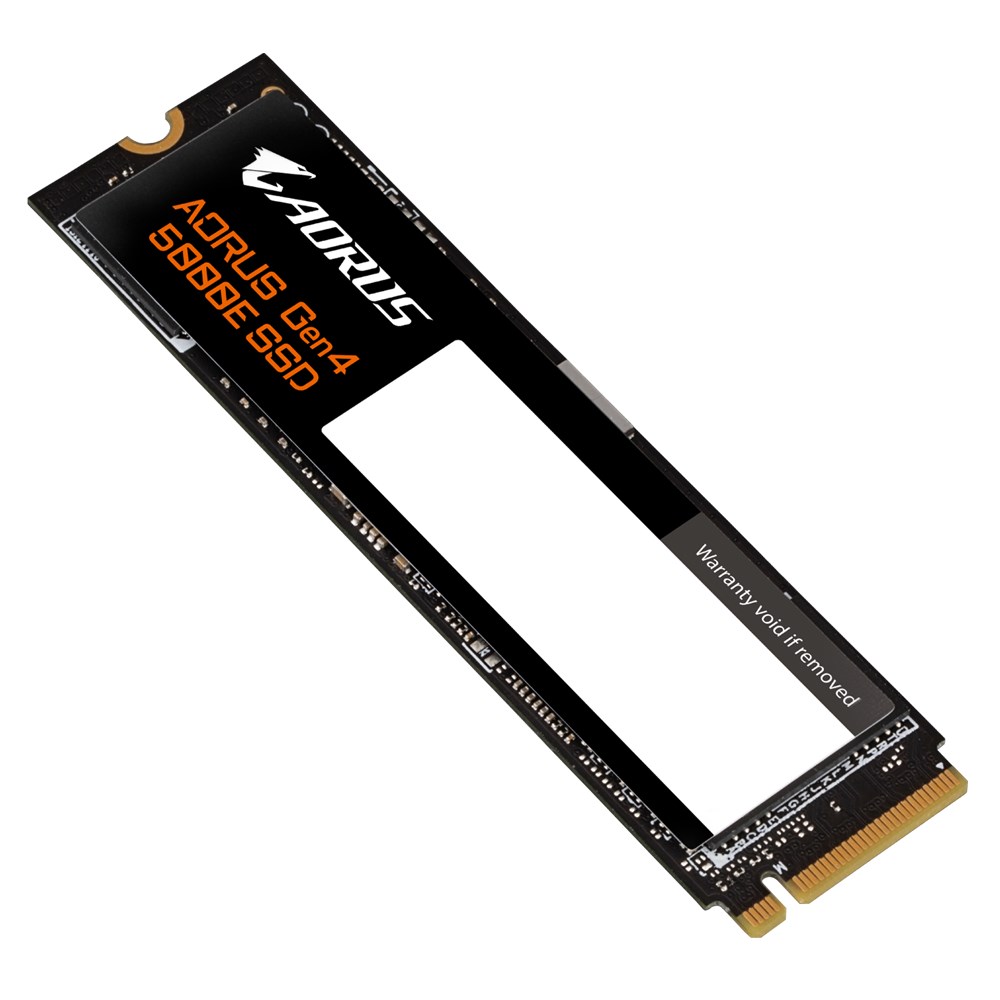

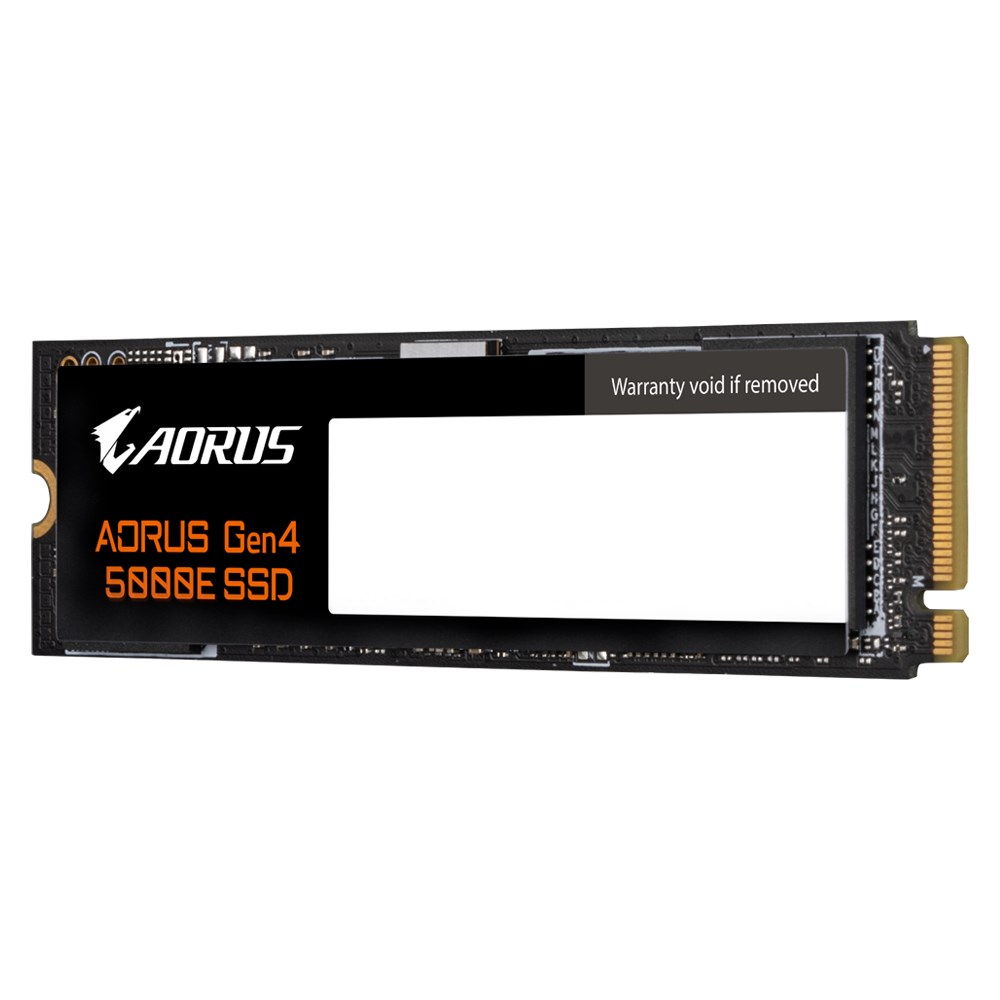

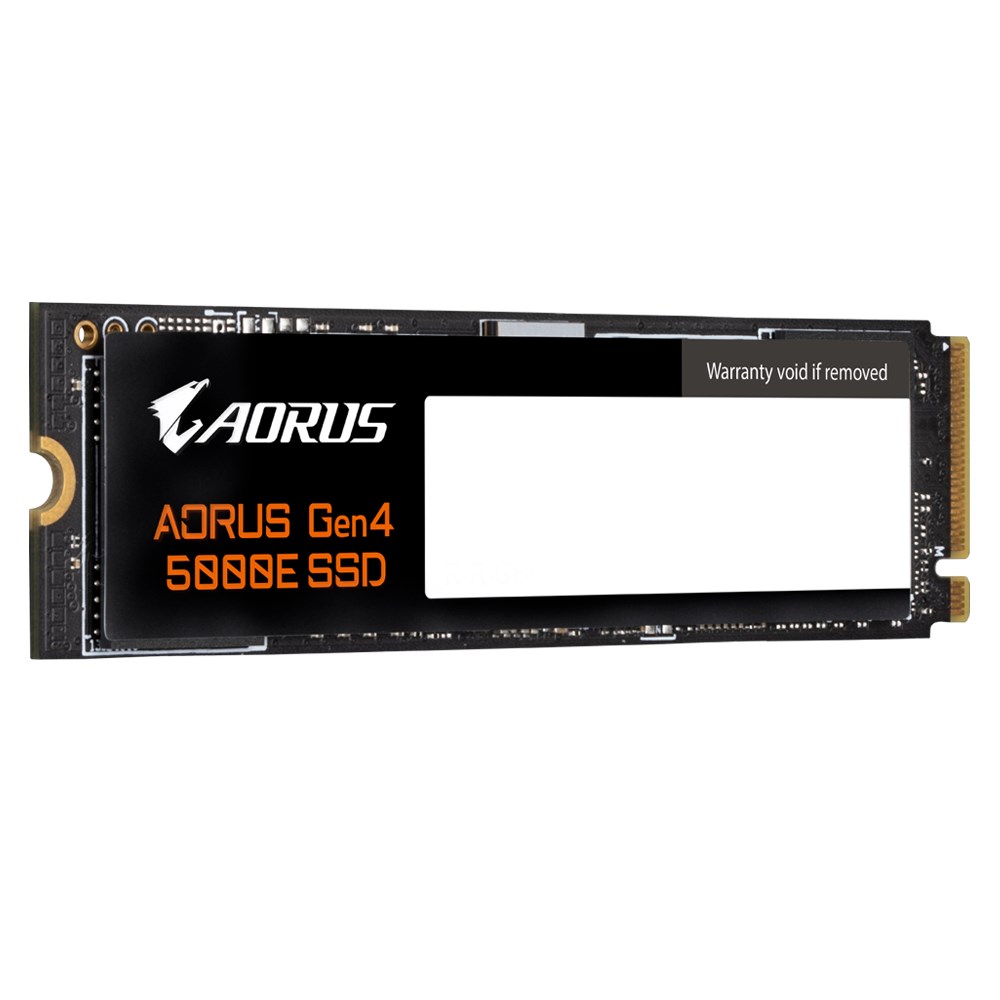

AORUS Gen4 5000E SSD 500GB

• Form Factor: M.2 2280
• Interface: PCI-Express 4.0 x4, NVMe 1.4
• Total Capacity: 500GB
• Sequential Read Speed : up to 5,000MB/s
• Sequential Write speed : up to 3,800MB/s
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T supported
• Energy-efficient
• Warranty: Limited 5-years

Interface

PCI-Express 4.0x4, NVMe 1.4

Form Factor

M.2 2280

Total Capacity

500GB

NAND

3D TLC NAND Flash

Sequential Read speed

Up to 5,000 MB/s

Sequential Write speed

Up to 3,800 MB/s

Dimension

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.5 million hours

Power Consumption (Active)

Average : R : 4W / W : 4W

Power Consumption(Idle)(ASPT on)

20mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

1. Limited 5-years or 300TBW.
2. Limited warranty based on 5 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
