Club3D Dokovací stanice Thunderbolt 4 certifikovaný 11v1, 3xUSB-C, 3xUSB-A, PD
Club3D Dokovací stanice Thunderbolt 4 certifikovaný 11v1, 3xUSB-C, 3xUSB-A, PD

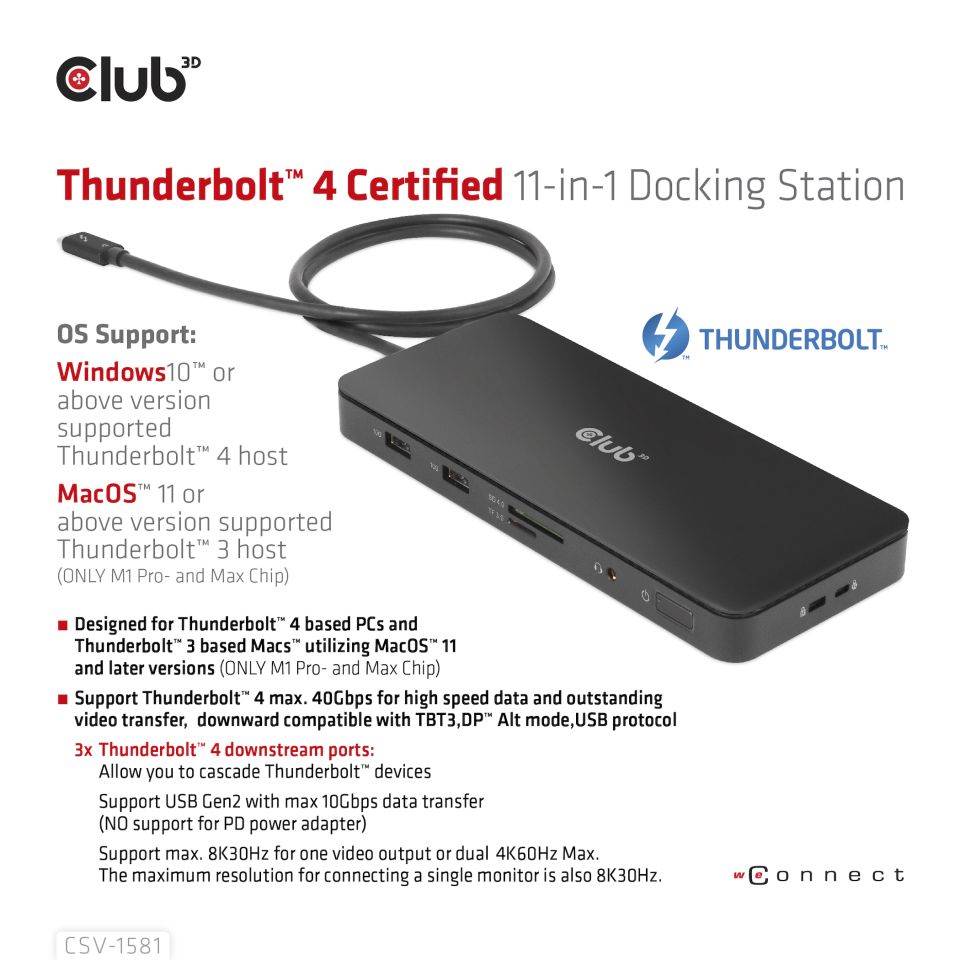

Thunderbolt 4 Certified 11-in-1 Docking Station
- Adopting Goshen Ridge solution
- Slim compact aluminum design
- Thunderbolt™ 4 Certified
- Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions(ONLY M1 Pro- and Max Chip).
- Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP™ Alt mode, USB protocol
- 3x Thunderbolt™ 4 downstream ports, allow you to cascade Thunderbolt™ devices
- 3x Thunderbolt™ 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter)
- 3x Thunderbolt™ 4 downstream ports support max. 8K30Hz for one video output or dual 4K60Hz Max.
- The maximum resolution for connecting a single monitor is also 8K30Hz.

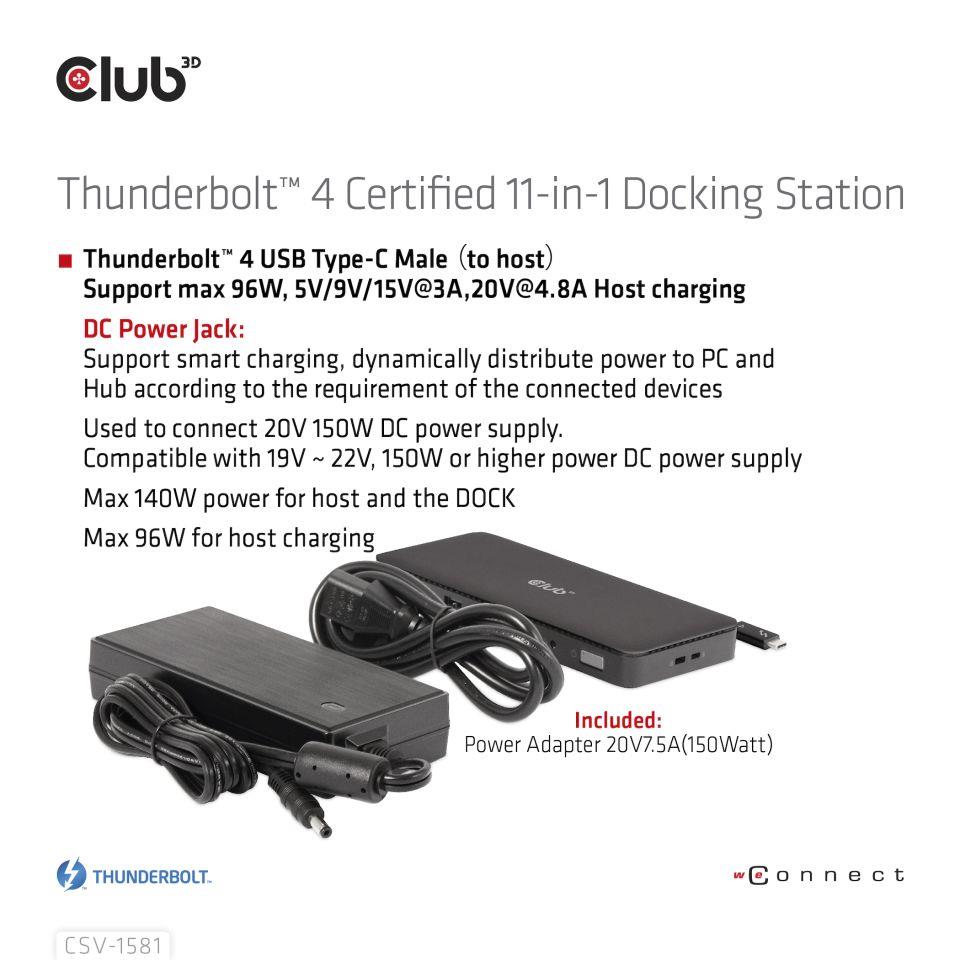

- Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
- Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
TECHNICAL SPECIFICATIONS
| OS Support | • Windows10™ or above version supported Thunderbolt™ 4 host • MacOS™ 11 or above version supported Thunderbolt™ 3 host(ONLY M1 Pro- and Max Chip) |

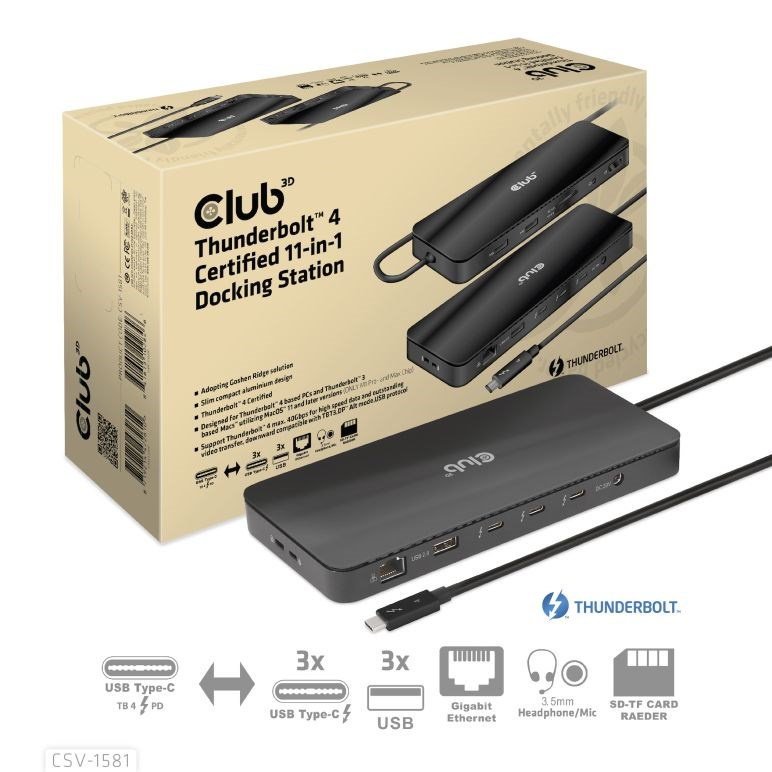

| In the box | • CSV-1581 Thunderbolt™ 4 Certified 11-in-1 Docking Station • Power Adapter 20V7.5A(150Watt) • QIG, Quick Installation Guide |

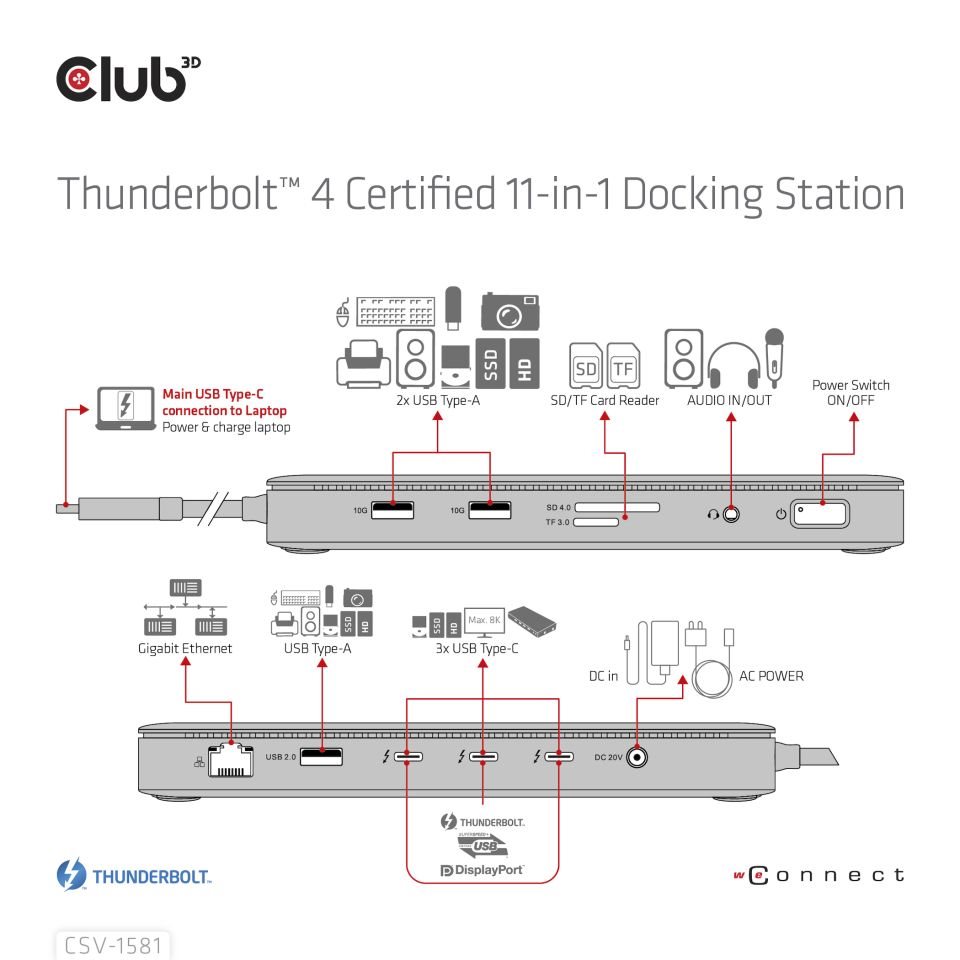

| Available Interfaces | Upstream: 1x |

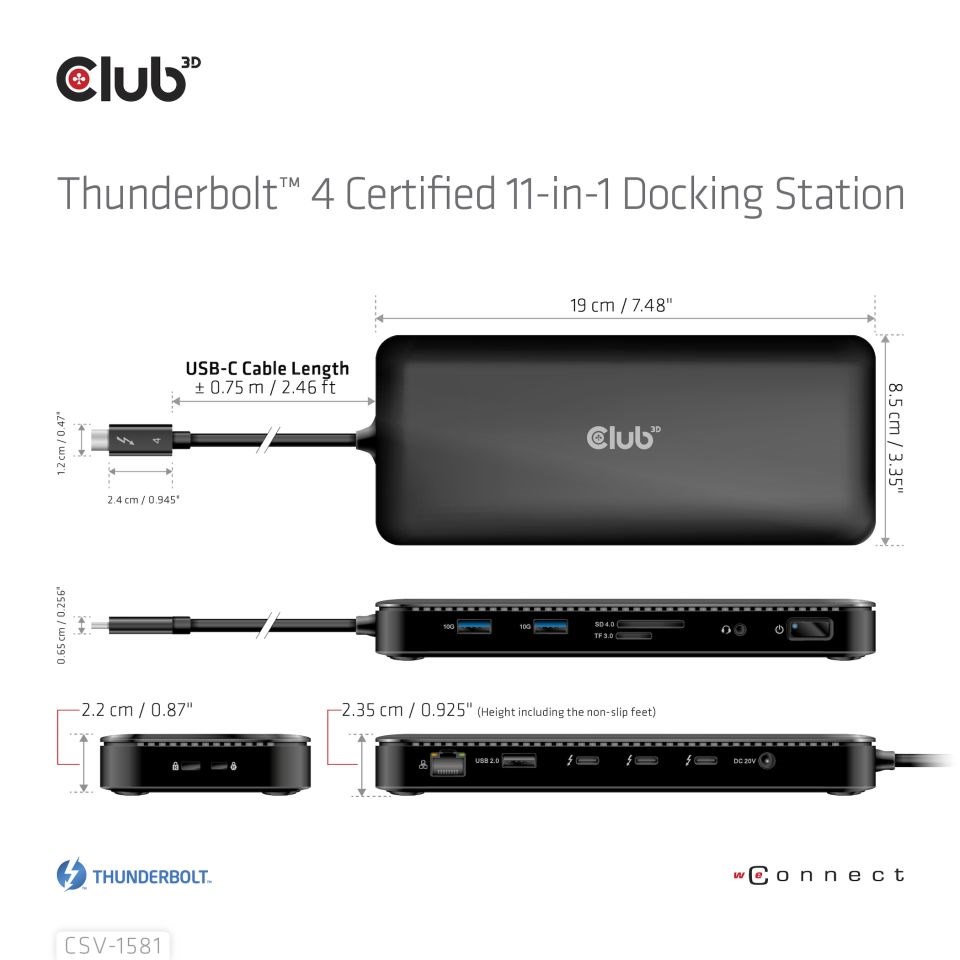

| Other info | • Box size: 26.7 x 15 x 8.2 cm / 10.51 x 5.9 x 3.23" • Dock dimensions: 19 x 8 x 2.2 cm / 7.48 x 3.15 x 0.86" • Power Supply dimensions: 16 x 7.3 x 3.4 cm / 6.3 x 2.87 x 1.34" • Power Cable Length approx.: 1.8 m / 6 ft • Product Weight: 360 gr / 2.7 oz • Power Supply Weight: 720 gr / 25.39 oz • Box Weight: 171 gr / 6.03 oz • Total Weight: 1251 gr / 44.12 oz • Meets ROHS, FCC, and CE EMI requirements |
